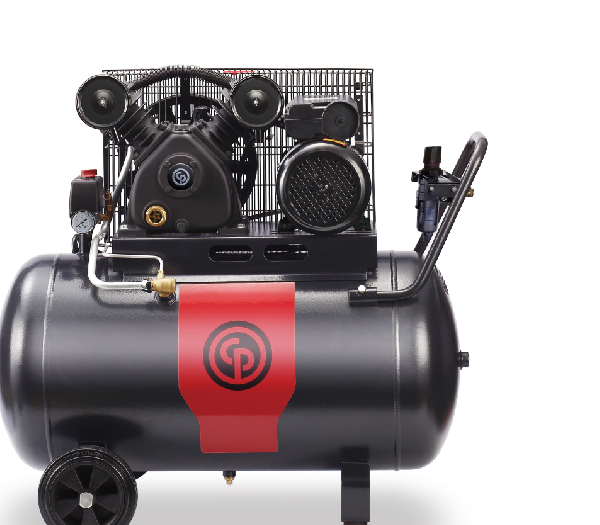

Chicago Pneumatic Ironman 5-150 Air Compressor (150L, 3 Phase)

1129740156

In-stock: Inventory updated

Slow-turning, long lifetime cast iron pump providing strong performance for multi-bay workshops. Optimal cooling via deep-finned cylinder heads and a cast iron flywheel. Large oil sight glass, stainless steel valves and valve plates for minimal losses. Requires 3-phase power.

  • Motor: 5.5HP, 4kW
  • Max operating pressure: 10 bar / 145 psi
  • Min operating pressure: 6 bar / 87 psi
  • Piston displacement: 25.4 CFM / 718 L/min
  • Free air delivery: 17.9 CFM / 508 L/min
  • Voltage: 415V / 3 phase / 50Hz
  • Current: 8.8A
  • Pump speed: 850 RPM
  • Tank: 150L
  • Type: Cast iron piston, 2 cylinder / 1 stage
  • Weight: 171kg
  • Dimensions (L x W x H): 1360 x 440 x 1040mm
