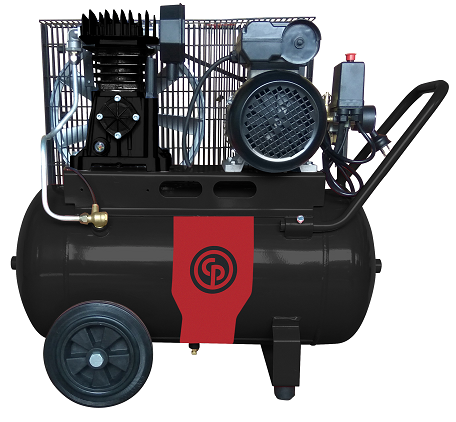

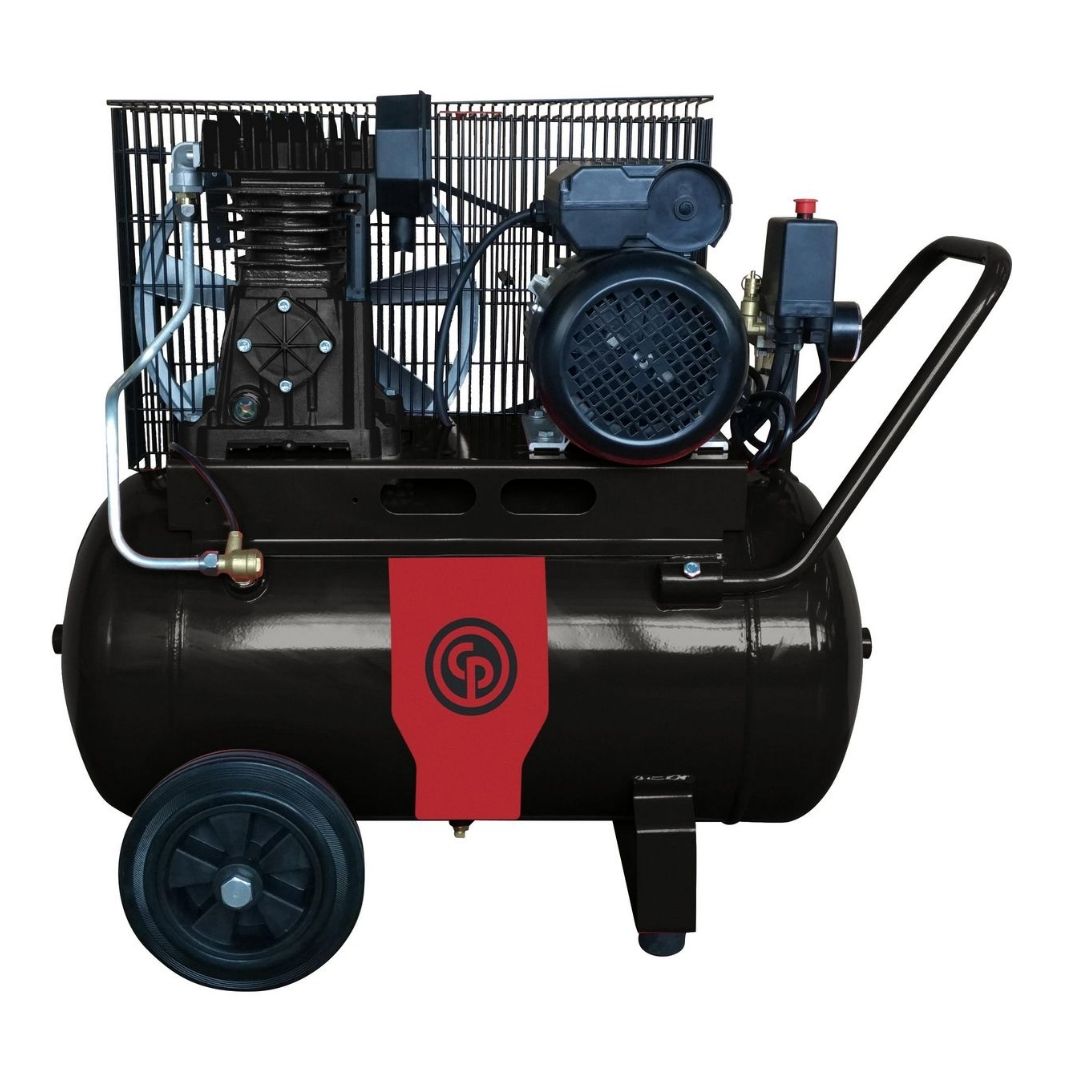

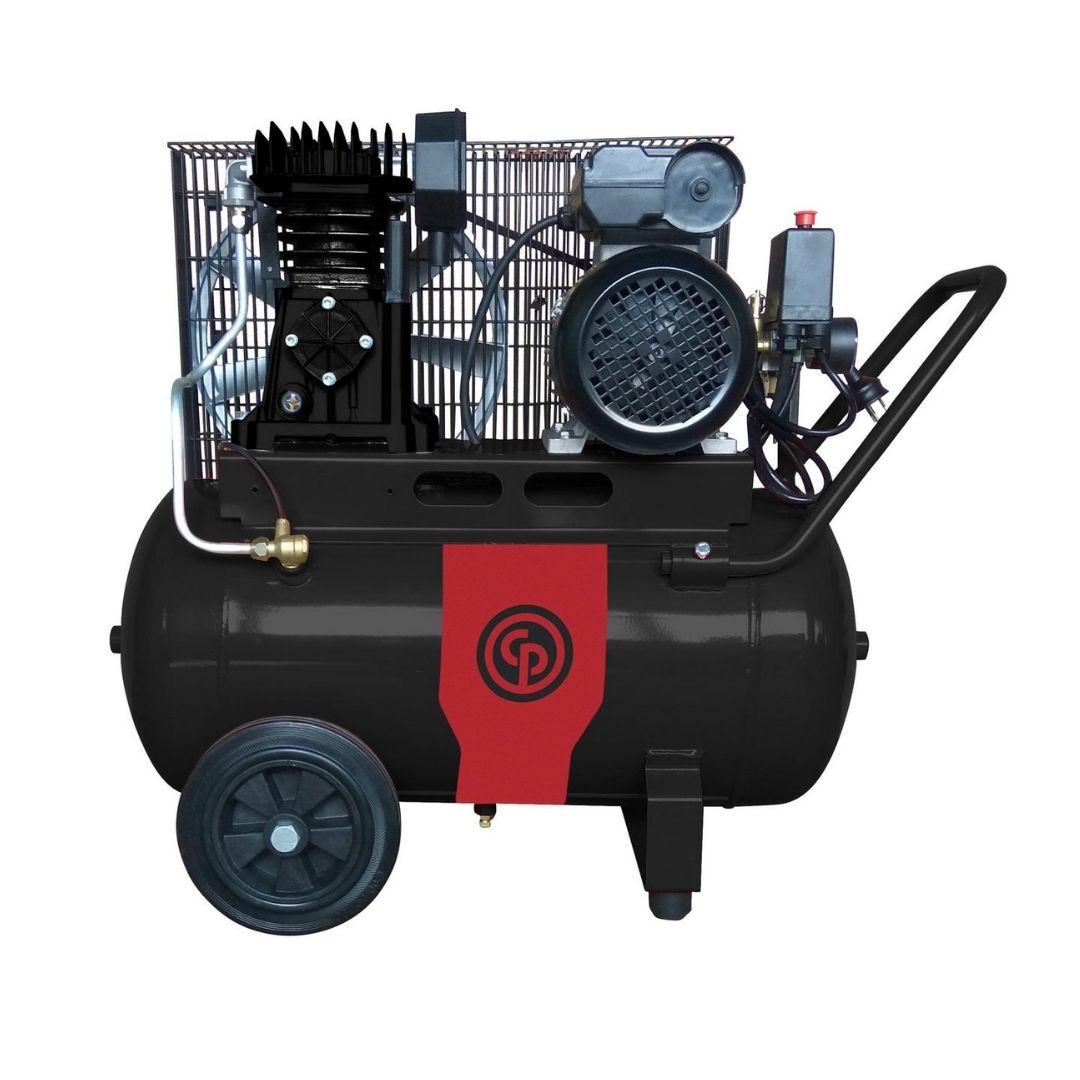

Chicago Pneumatic CPRC 2.5-50 Workshop Air Compressor (50L)

1129740273

✓
In-stock: Inventory updated

The Chicago Pneumatic CPRC 2.5-50 is a dual cylinder, belt-driven workshop compressor on a compact 50 litre tank. It runs on a standard 10 Amp power point, so most garages can use it without an electrical upgrade.

Oil-lubricated240V 10 AmpStandard duty
PowerPlugs into any standard household power point. No electrical work needed.
WorkloadSuits regular use through the week. Fine for a single operator, not built for continuous all-day running.
NoiseLouder than an oil-free unit. Better suited to a workshop than a customer-facing space.
Air qualityOil-lubricated, but a regulator and water trap are fitted as standard, so no basic filtration purchase is needed. For paint, ceramic coating or PPF work, add a coalescing filter downstream, since a water trap does not remove oil aerosol.

Best suited to

Ideal for

  • Single-bay detailing setups
  • Home workshops with regular use
  • Air tools, blow guns and tyre inflation
  • Buyers wanting more output than oil-free on 10 Amp

Not the right choice if

  • You need a very quiet compressor
  • You are running multiple tools simultaneously
  • You need a large air reserve for continuous work

What it can handle

Application Suitability
Blow gun / drying Comfortable
Interior cleaning gun Suitable, though the 50L tank means more frequent cycling
Tyre inflation Comfortable
Air sander or polisher Suitable for shorter sessions
Two tools at once Not recommended

Tool and application suitability above is general guidance based on typical air consumption, not a performance guarantee. Actual results depend on your tools, air line setup, working pressure and how continuously you run them. If you are unsure whether this compressor suits your specific setup, get in touch before ordering.

Before you order: The airflow figure below is pump displacement, not usable output. Fit a filter and water separator before any tool used near paint or interior surfaces.

Specifications

Specification Detail
Motor 2.5 HP / 1.86 kW
Pump displacement 10.1 CFM / 285 L/minThis is what the pump moves. Usable output at the tool is lower.
Maximum pressure 10 bar / 145 psi
Tank 50 litres
Power supply 240V single phase, 10 AmpStandard household power point.
Pump type Piston, oil-lubricated, belt-driven, dual cylinderBelt drive runs slower and cooler than direct drive.
Outlet connection Nitto 1/4" quick-connect couplerA Nitto quick-connect coupler is fitted to the outlet. To connect threaded pipework or a 1/2" hose, remove the coupler and fit a 1/4" to 1/2" BSP adaptor nipple.
Supply plug 10 Amp plug
Supplied fitted Regulator and water trap fitted
Weight 64 kg
Dimensions (L x W x H) 840 x 380 x 810 mm

Choosing the right option

Choose this if you want workshop-grade output but only have a 10 Amp supply.
Step up if the 50L tank cycles too often. The CPRC 3-100 doubles the reserve, though it needs 15 Amp.
Consider instead the Whisper 2-50 if noise or oil contamination is a concern.

Common questions

Does it run on a normal power point?



Why is it louder than the oil-free models?



Do I need a filter for detailing work?



What maintenance does it need?



Planning a full compressed air setup?

Plan Your Air Line Compare All Compressors
