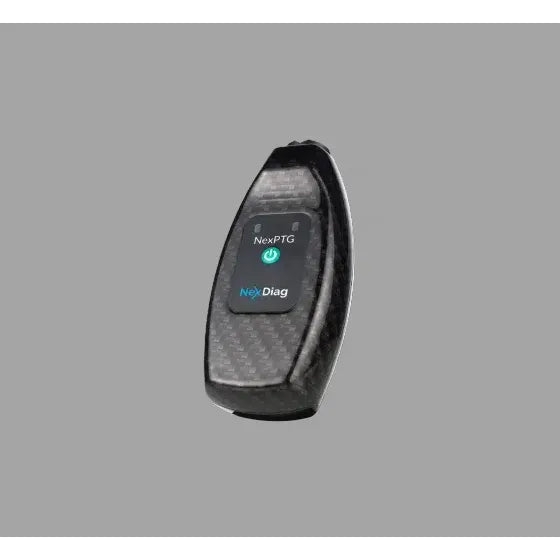

NexDiag NexPTG PRO Carbon

NexDiagSKU: NexCarbon

Type: NexPTG PRO Carbon
Sale price$699.00
In stock


 NexDiag NexPTG PRO Carbon

The PRO Carbon is the newest model and has the greatest number of functionalities, innovative features not available in other models. The meter is designed for automotive professionals. In addition, the PRO Carbon gauge has a number of options that will help the user to examine a vehicle more efficiently and more effectively.

  • Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum
  • Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
  • Range of measurement: 0 – 3000 μm (0 – 118,11 mils)
  • Resolution of measurement: 1 μm (0,04 mils)
  • Type of probe / End of probe: movable/spherical
  • Measurement memory: Up to 8000
  • Voice commands
  • VIN code reader
  • Works with Smartwatches
  • Types of bodies in the report: dedicated
  • Certificate: No
  • Supported systems: iOS / Android

 PDF Comparison chart

Main Comparison of NexPTG  models and Specification

Range of measurement 0 - 3000 μm (0 - 118.11 mils) 0 - 2500 μm (0 - 98,43 mils)
Measurement resolution 1 μm (0,04 mils) 1 μm (0,04 mils)
Type of probe / Probe ending Movable / Spherical Movable / Spherical
Probe housing Profiled Profiled
Curve measurement Yes Yes
Measurement memory Up to 8000* Up to 4000*
Substrate recognition Steel, Galvanized Steel**, Aluminum Steel, Galvanized Steel**, Aluminum
Certificate No No
Lacquer Coating Analysis System - SAPL Extended ver. 2 Extended
Voice commands Yes No
Types of bodies in the report Individual Basic
Dedicated vehicle body Yes No
Works with Smartwatches Yes No
VIN code reader Yes No
Warranty 36 months 24 months
Individual layout Yes No
Multilingual menu PL, EN, DE, RU, CZ, FR, ES, IT, FE, HE, NL, NO, TR, HU, SA, JP PL, EN, DE, RU, CZ, FR, ES, IT, FE, HE, NL, NO, TR, HU, SA, JP
Suggested measurement points Yes Yes
Creation of reports and measurement history Yes Yes
Export of reports and measurement history to e‑mail Yes Yes
API communication Yes Yes
Dedicated API (additional paid) Yes Yes
Number of measurements per second 10 10
Time of continuous work on alkaline batteries Up to 100h Up to 100h
Ambient temperature for the gauge's work From -20 to + 40 °C From -20 to + 40 °C
Unit of measurement μm or mils μm or mils
Substrate testing Steel, Galvanized Steel, Aluminum Steel, Galvanized Steel, Aluminum
Communication with the application Bluetooth 4.0 LE Bluetooth 4.0 LE
Application update Free Free
Message indication Text, graphic, audio Text, graphic, audio
Housing colour Carbon Blue
Weight of the device without batteries 58 grams 58 grams
Size 112 x 50 x 28 mm 112 x 50 x 28 mm
Availability on systems Android, iOS Android, iOS
Supported batteries 2xAA 2xAA
Measurement modes Continuous, Single Continuous, Single
Testing relative to reference point Yes Yes
Automatic device shutdown in period of inactivity Yes Yes
Measurement statistics Yes Yes
Enrichment with new features Yes Yes
Buyer’s guide Yes Yes

* After performing the indicated measurements, the next ones will be saved in place of the oldest saved results

** recognition of galvanized steel - beta version, recognition in the range of 0-1000 μm
