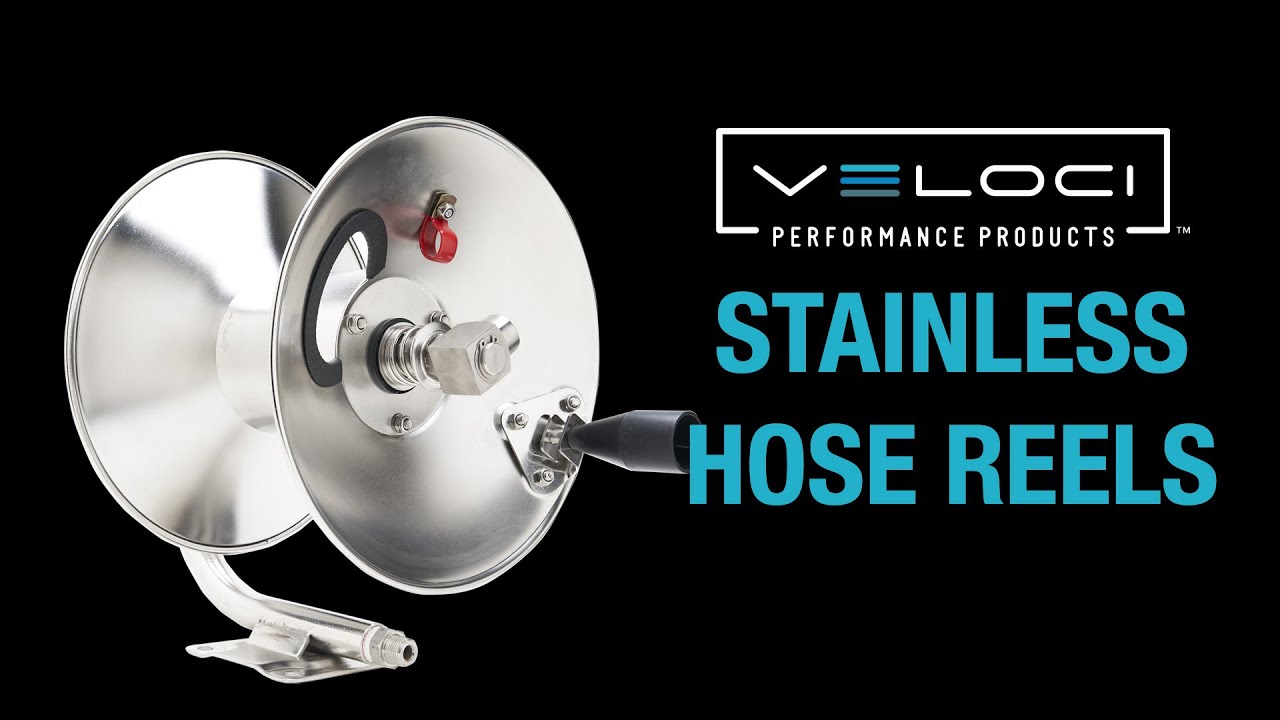

Veloci's 100' Stainless Hose Reel

MTM HydroSKU: 27.1004

Options: 100' Stainless Hose Reel
Sale price$659.95
In stock


Veloci's 100' Stainless Hose Reel

Veloci's Stainless Hose Reels offer a consolidated method for storing your KobraJet hose! These Hose reels are hot water rated up 215°F and boast anti corrosion components with a high performance stainless swivel. Hardware is not included for mounting as this is specific to your mounting requirements

Simply slide the swivel end of your Kobrajet hose through the opening provided at the side of the reel core and install the 3/8" Male NPT threads into the 3/8" Female NPT threads of the swivel. Do not make a Quick Coupling joint at the swivel as there is not enough space and the bend in the line is too severe. Be sure to allow a small amount of slack at the swivel joint and use the red hose fastener provided to secure the hose at this joint.

Using a whip line connected to your pump, connect to the 3/8" Male NPT hose reel inlet. When planning, add an extra foot to the distance of the whip line so as not to bend the whip line too severely. Lastly, install the handle with the hardware provided.

Before leaving your hose reel unattended, always engage the locking mechanism on the side of the reel.

Spec Sheet here

Reel Dimensions

Measurement 50' 100'
Height 12.5" 12.5"
Total Width 11" 15"
Depth 10.5" 10.5
Wall Width 7.5" 12"
Core Width 4.375" 8.75"
Core Diameter 4.25" 4.25"
Inlet 3/8" Male NPT 3/8" Male NPT
Base to Center of Core 7.5" 7.5"
Mounting Bracket 4 holes-square - 3.375" to center 4 holes-square - 3.375" to center
Hole Diameter 0.375" Circle 0.375" Circle
Pin Lock Yes Yes
Mounting Hardware None None
