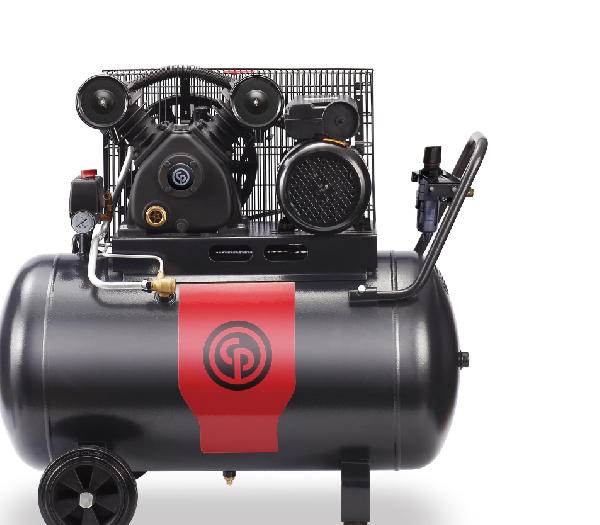

Chicago Pneumatic CP Ironman 10-270 3-Phase Air Compressor

1129740162

In-stock: Inventory updated

Slow-turning, long lifetime cast iron pump providing strong performance for larger multi-bay workshops. Optimal cooling via deep-finned cylinder heads and a cast iron flywheel. Large oil sight glass, stainless steel valves and valve plates for minimal losses. Requires 3-phase power.

  • Motor: 10HP, 7.5kW
  • Max operating pressure: 10 bar / 145 psi
  • Min operating pressure: 6 bar / 87 psi
  • Piston displacement: 51.9 CFM / 1470 L/min
  • Free air delivery: 36.0 CFM / 1020 L/min
  • Voltage: 415V / 3 phase / 50Hz
  • Current: 23.7A
  • Pump speed: 810 RPM
  • Tank: 270L
  • Type: Cast iron piston, 4 cylinder / 1 stage
  • Weight: 290kg
  • Dimensions (L x W x H): 2000 x 710 x 1370mm
