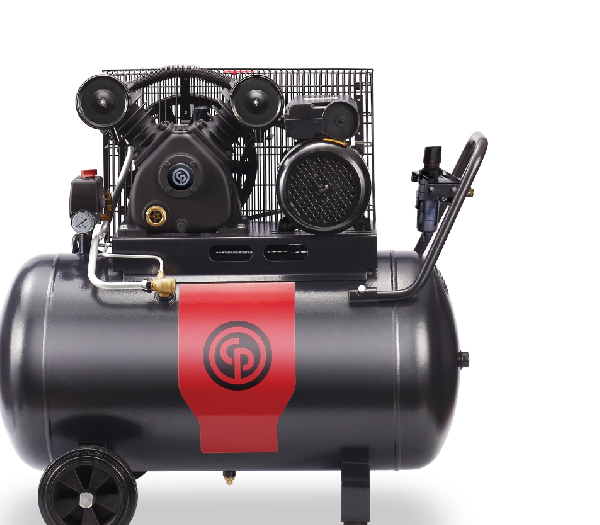

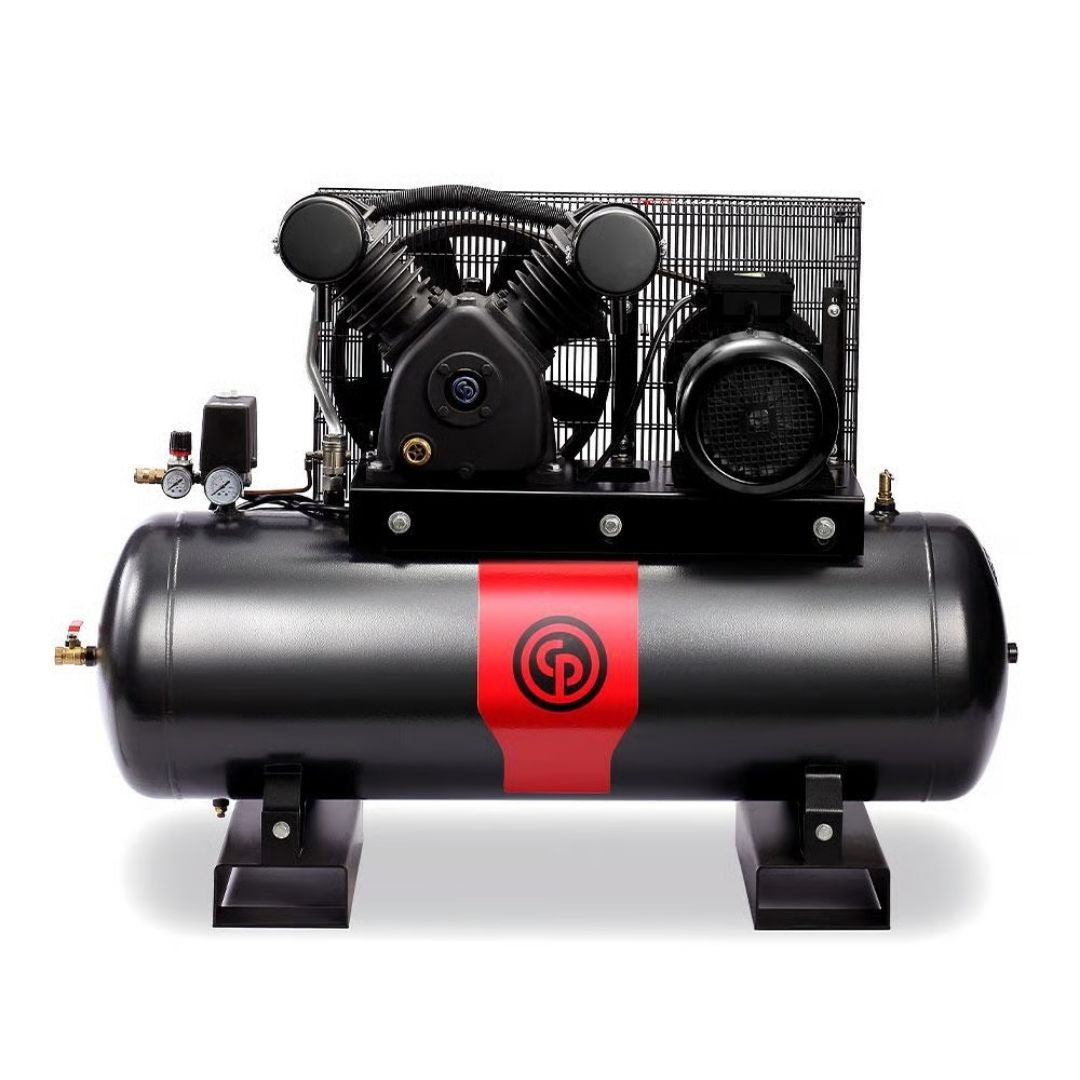

Chicago Pneumatic Ironman 7-270 Air Compressor (270L, 3 Phase)

1129740159

In-stock: Inventory updated

Slow-turning, long lifetime cast iron pump providing strong performance for multi-bay workshops. Optimal cooling via deep-finned cylinder heads and a cast iron flywheel. Large oil sight glass, stainless steel valves and valve plates for minimal losses. Requires 3-phase power.

  • Motor: 7.5HP, 5.5kW
  • Max operating pressure: 10 bar / 145 psi
  • Min operating pressure: 6 bar / 87 psi
  • Piston displacement: 36.4 CFM / 1030 L/min
  • Free air delivery: 27.2 CFM / 770 L/min
  • Voltage: 415V / 3 phase / 50Hz
  • Current: 13.6A
  • Pump speed: 800 RPM
  • Tank: 270L
  • Type: Cast iron piston, 3 cylinder / 1 stage
  • Weight: 250kg
  • Dimensions (L x W x H): 1560 x 610 x 1280mm
