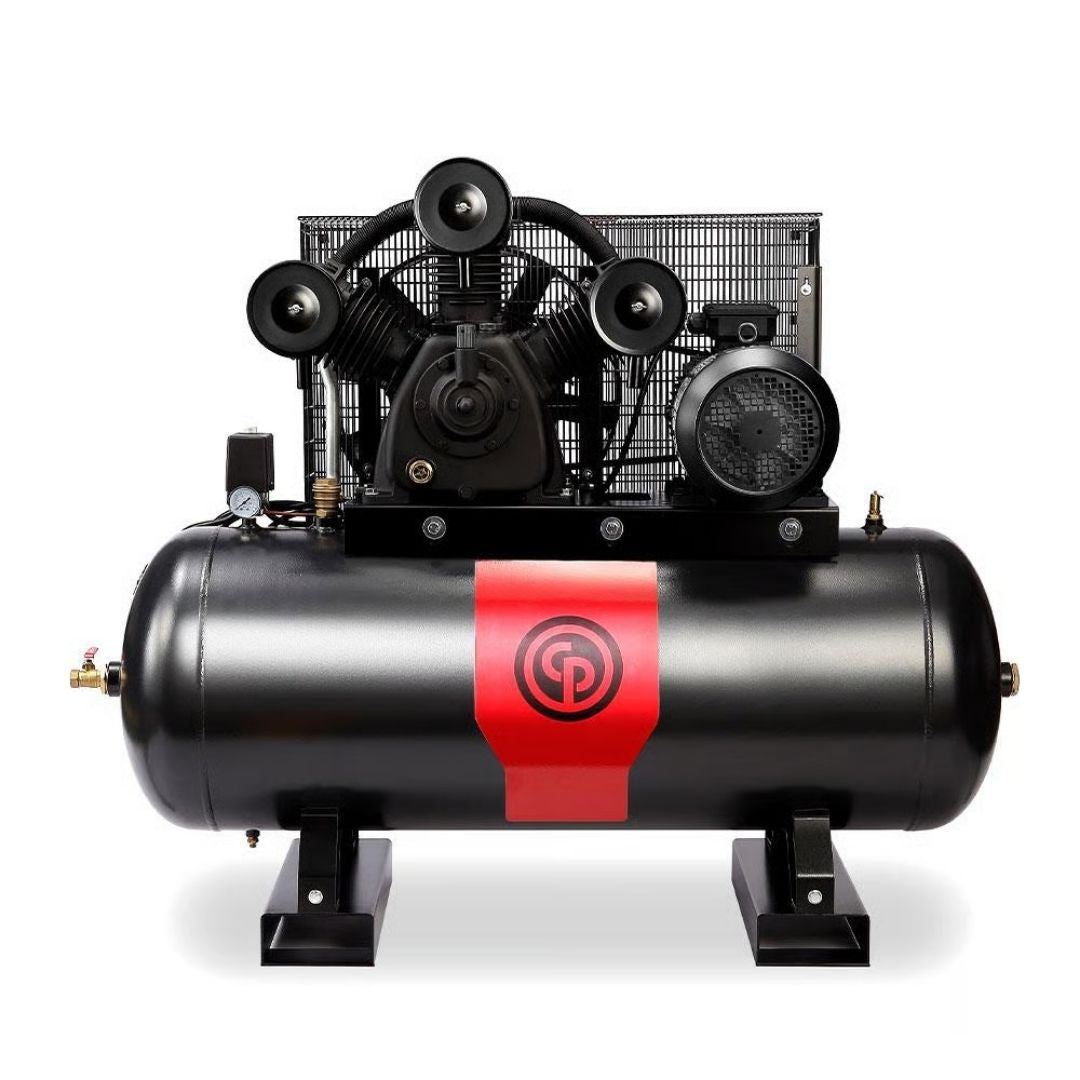

The Chicago Pneumatic Ironman 10-270 is the largest compressor in our range. A 10 HP four-cylinder cast iron pump delivering 36 CFM usable output, enough to support around five air tools running simultaneously.
| Application | Suitability |
|---|---|
| Blow gun / drying | Comfortable |
| Interior cleaning gun | Comfortable |
| Air sander or polisher | Comfortable, multiple operators supported |
| Three to four tools at once | Comfortable |
| Five tools at once | Suitable, this is what it is designed for |
| Six or more tools | Contact us to discuss your requirements |
Tool and application suitability above is general guidance based on typical air consumption, not a performance guarantee. Actual results depend on your tools, air line setup, working pressure and how continuously you run them. If you are unsure whether this compressor suits your specific setup, get in touch before ordering.
Before you order: Requires three-phase power with adequate current capacity (23.7 Amp draw). At 350 kg and 2 metres long, confirm access and placement before delivery.
| Specification | Detail |
|---|---|
| Motor | 10 HP / 7.5 kW |
| Piston displacement | 51.9 CFM / 1470 L/minWhat the pump moves. |
| Free air delivery | 36.0 CFM / 1020 L/minUsable output. Size your tools against this. |
| Maximum pressure | 10 bar / 145 psi |
| Tank | 270 litres |
| Power supply | 415V three phase, 23.7 AmpHigh current draw, confirm your supply capacity. |
| Pump speed | 810 RPM |
| Noise level | 77+ dB(A) at 1 metre |
| Pump type | Cast iron piston, 4 cylinder / 1 stageFour cylinders for maximum output. |
| Weight | 350 kg |
| Dimensions (L x W x H) | 2000 x 710 x 1370 mm |
| Outlet connection | 3/4" BSP femaleThreaded female port. A male adaptor nipple screws in to take a hose or rigid pipework. |
| Supplied fitted | No regulator or water trap. Connection by a licensed electrician. |
| Warranty | 2 years on the pump |
