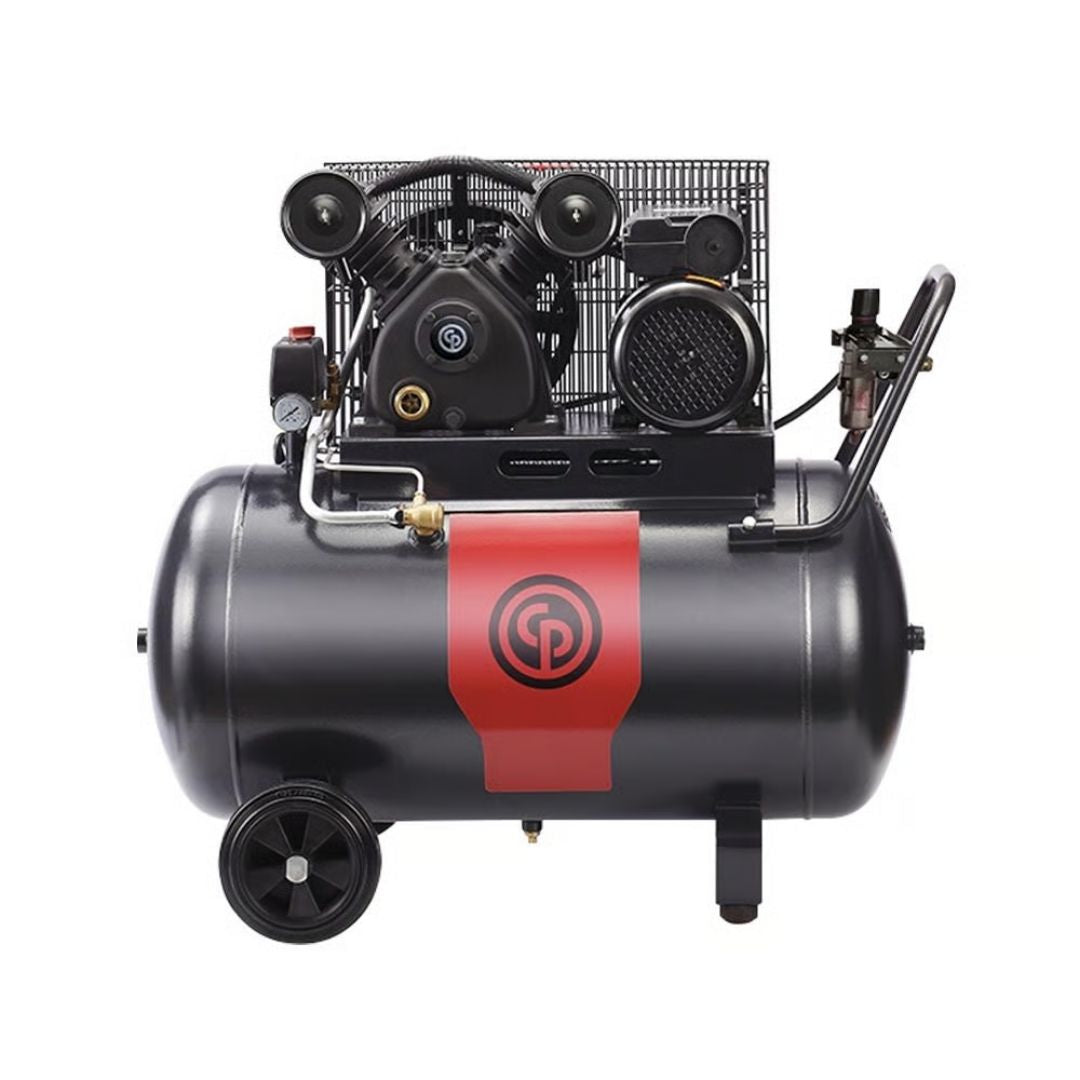

Chicago Pneumatic Ironman 3-100 Air Compressor (100L, 15A)

1129740153

✓
In-stock: Inventory updated

The Chicago Pneumatic Ironman 3-100 is a 3 HP cast iron compressor on a 100 litre tank, built for daily commercial duty rather than light trade use. It is the largest single-phase Ironman in our range.

Oil-lubricatedCast iron240V 15 AmpHeavy duty
PowerNeeds a 15 Amp outlet, not a standard household point. Check before ordering.
WorkloadCast iron pump built for daily commercial duty. The most capable single-phase option in our range.
NoiseSlow-turning pump keeps noise lower than a comparable standard-duty compressor.
Air qualityOil-lubricated, but a regulator and water trap are fitted as standard, so no basic filtration purchase is needed. For paint, ceramic coating or PPF work, add a coalescing filter downstream, since a water trap does not remove oil aerosol.

Best suited to

Ideal for

  • Professional detailing studios
  • Workshops running air tools daily
  • Buyers wanting maximum life from a 240V unit
  • Setups without three-phase power

Not the right choice if

  • You only have a 10 Amp power point
  • Noise is a genuine constraint
  • You need two or more operators on air simultaneously

What it can handle

Application Suitability
Blow gun / drying Comfortable
Interior cleaning gun Comfortable, 10.2 CFM usable output covers this well
Tyre inflation Comfortable
Air sander or polisher Suitable for single-operator daily use
Two tools at once Possible for low-draw combinations, not recommended routinely

Tool and application suitability above is general guidance based on typical air consumption, not a performance guarantee. Actual results depend on your tools, air line setup, working pressure and how continuously you run them. If you are unsure whether this compressor suits your specific setup, get in touch before ordering.

Before you order: Requires a 15 Amp outlet. Free air delivery of 10.2 CFM is the usable figure to size your tools against.

Specifications

Specification Detail
Motor 3 HP / 2.2 kW
Piston displacement 14.1 CFM / 400 L/minWhat the pump moves.
Free air delivery 10.2 CFM / 290 L/minUsable output at the tool. Size your tools against this figure.
Maximum pressure 10 bar / 145 psi
Tank 100 litres
Power supply 240V single phase, 15 AmpNot a standard household outlet.
Pump speed 1000 RPMSlow-turning for longer life.
Pump type Cast iron piston, 2 cylinder / 1 stage
Weight 83 kg
Dimensions (L x W x H) 520 x 510 x 840 mm
Outlet connection Nitto 1/4" quick-connect couplerA Nitto quick-connect coupler is fitted to the outlet. To connect threaded pipework or a 1/2" hose, remove the coupler and fit a 1/4" to 1/2" BSP adaptor nipple.
Supply plug 15 Amp plug
Supplied fitted Regulator and water trap fitted
Warranty 2 years on the pump

Choosing the right option

Choose this if you want the most durable single-phase option available and have 15 Amp power.
Step up if you need two or more operators on air at once. The Ironman 5-150 is built for that, though it needs three-phase.
Consider instead the CPRS 3-270 if noise is a real constraint in your space.

Common questions

Can I plug this into a normal power point?



What is the difference between displacement and free air delivery?



Is this enough for a full-time detailing business?



What maintenance does it need?



Planning a full compressed air setup?

Plan Your Air Line Compare All Compressors
