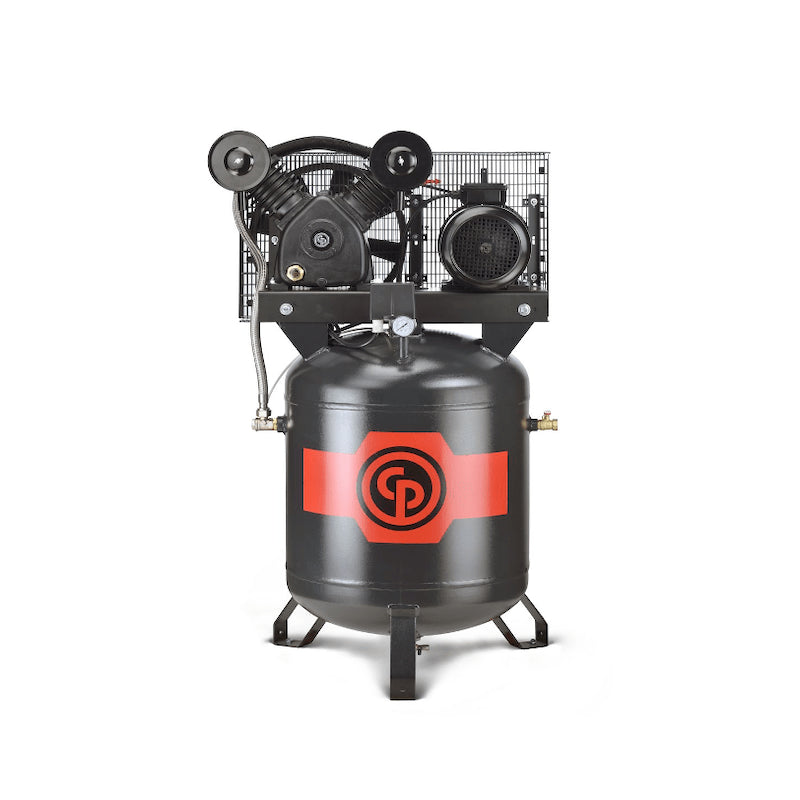

The Chicago Pneumatic Ironman 5-200V uses the same 5.5 HP cast iron pump as the 5-150, mounted on a vertical 200 litre tank. If floor space is tight, this gives you a larger air reserve in a considerably smaller footprint.
| Application | Suitability |
|---|---|
| Blow gun / drying | Comfortable |
| Interior cleaning gun | Comfortable |
| Air sander or polisher | Comfortable for sustained single-operator use |
| Two tools at once | Suitable |
| Three or more tools | Not recommended, step up to the 7-270 |
Tool and application suitability above is general guidance based on typical air consumption, not a performance guarantee. Actual results depend on your tools, air line setup, working pressure and how continuously you run them. If you are unsure whether this compressor suits your specific setup, get in touch before ordering.
Before you order: Requires three-phase power. Vertical tanks need adequate ceiling clearance, check your available height before ordering.
| Specification | Detail |
|---|---|
| Motor | 5.5 HP / 4 kW |
| Piston displacement | 25.4 CFM / 718 L/minWhat the pump moves. |
| Free air delivery | 17.9 CFM / 508 L/minUsable output. Size your tools against this. |
| Maximum pressure | 10 bar / 145 psi |
| Tank | 200 litres, vertical50L more than the 5-150 in a smaller floor footprint. |
| Power supply | 400V three phaseThree-phase supply required. |
| Pump type | Cast iron piston |
| Weight | 195 kg |
It stands upright rather than lying flat, so you get 50 litres more storage than the 5-150 while taking up considerably less floor area. The pump, motor and output are identical.
Yes. This unit cannot run on single-phase supply.
Confirm your available clearance before ordering, as vertical units are significantly taller than horizontal equivalents. Get in touch if you need to check.
Yes, identical pump and identical 17.9 CFM free air delivery. The only differences are tank size and orientation.
