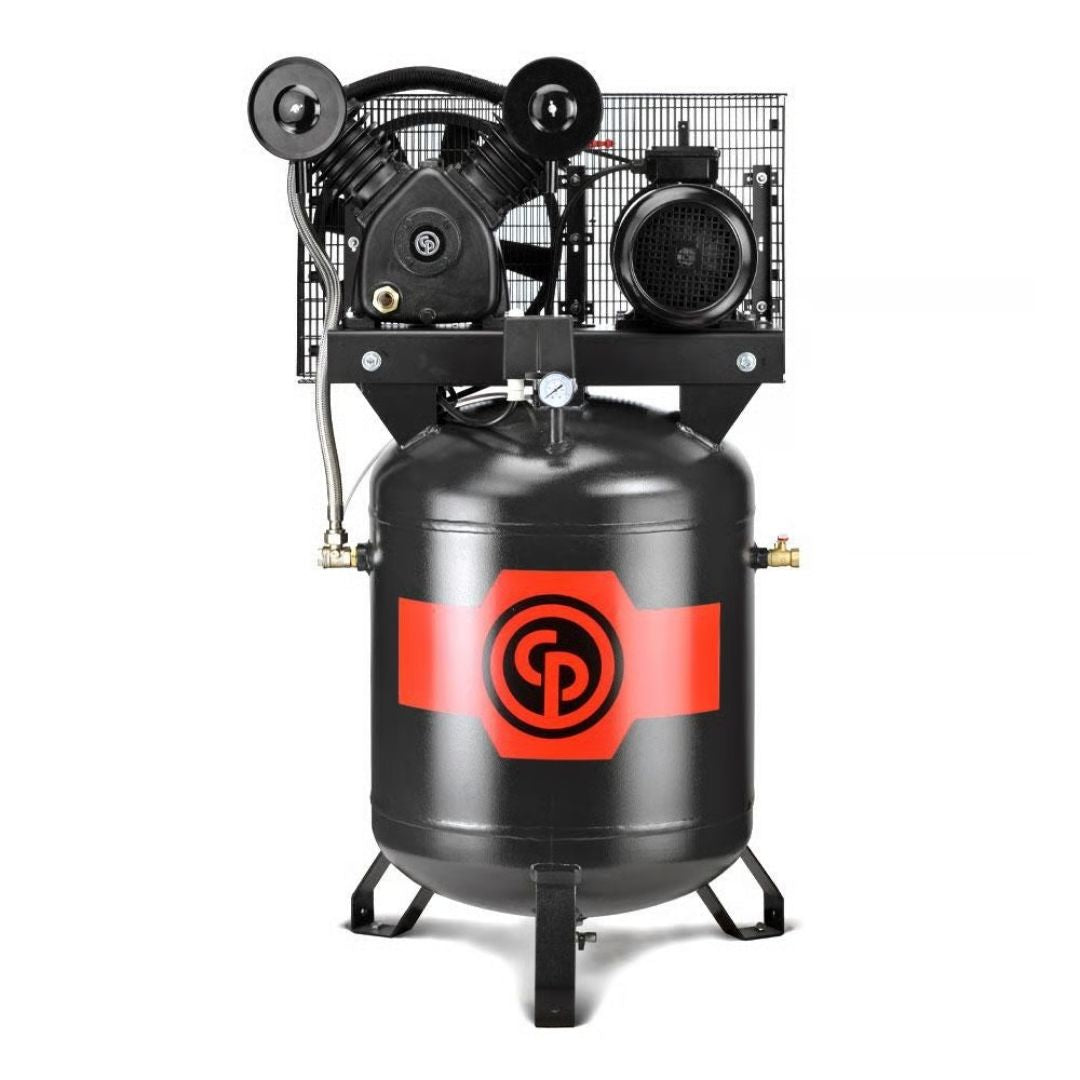

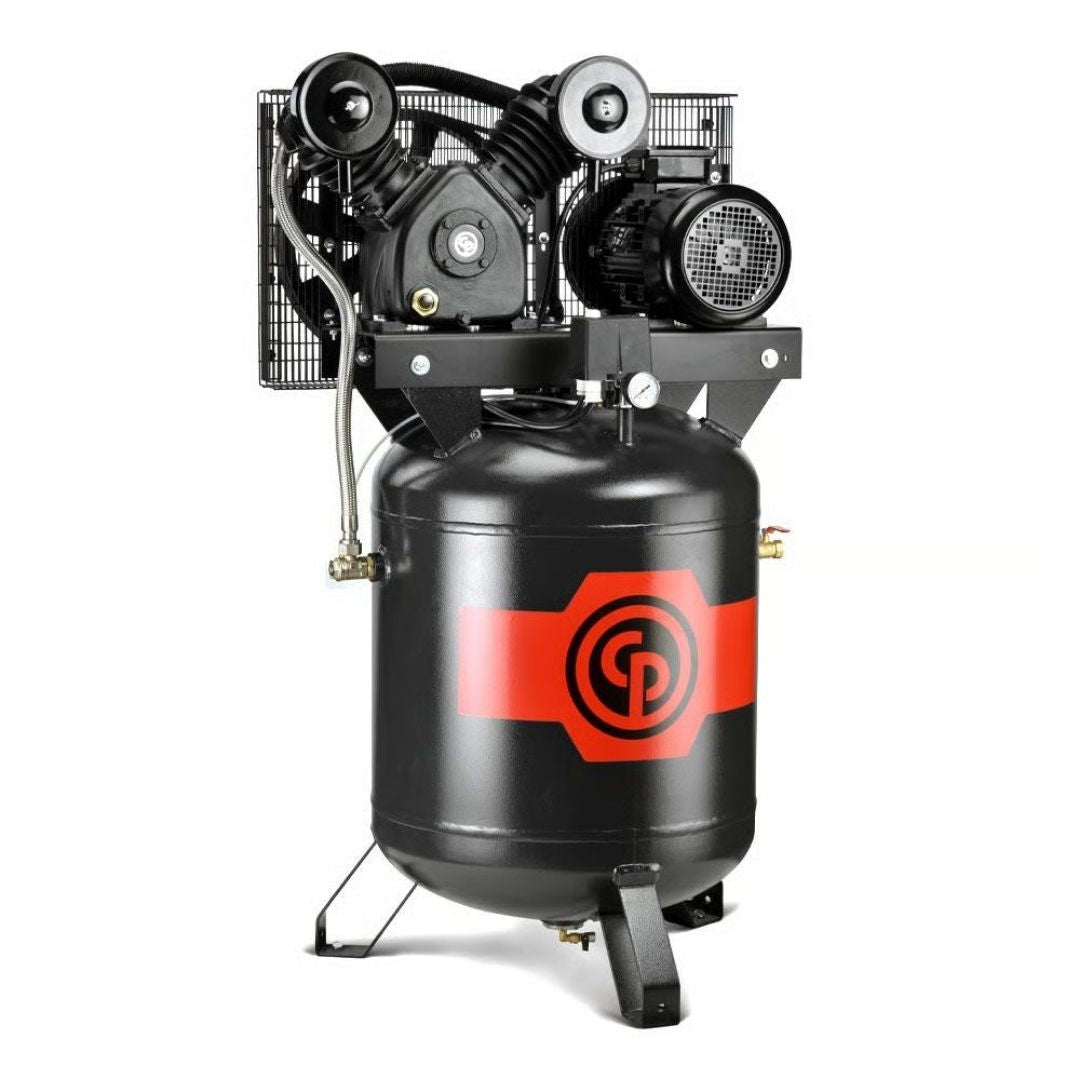

The Chicago Pneumatic Ironman 5-200V uses the same 5.5 HP cast iron pump as the 5-150, mounted on a vertical 200 litre tank. If floor space is tight, this gives you a larger air reserve in a considerably smaller footprint.
| Application | Suitability |
|---|---|
| Blow gun / drying | Comfortable |
| Interior cleaning gun | Comfortable |
| Air sander or polisher | Comfortable for sustained single-operator use |
| Two tools at once | Suitable |
| Three or more tools | Not recommended, step up to the 7-270 |
Tool and application suitability above is general guidance based on typical air consumption, not a performance guarantee. Actual results depend on your tools, air line setup, working pressure and how continuously you run them. If you are unsure whether this compressor suits your specific setup, get in touch before ordering.
Before you order: Requires three-phase power. Vertical tanks need adequate ceiling clearance, check your available height before ordering.
| Specification | Detail |
|---|---|
| Motor | 5.5 HP / 4 kW |
| Piston displacement | 25.4 CFM / 718 L/minWhat the pump moves. |
| Free air delivery | 17.9 CFM / 508 L/minUsable output. Size your tools against this. |
| Maximum pressure | 10 bar / 145 psi |
| Tank | 200 litres, vertical50L more than the 5-150 in a smaller floor footprint. |
| Power supply | 400V three phaseThree-phase supply required. |
| Pump type | Cast iron piston |
| Outlet connection | 3/4" BSP femaleThreaded female port. A male adaptor nipple screws in to take a hose or rigid pipework. |
| Supplied fitted | No regulator or water trap. Connection by a licensed electrician. |
| Weight | 195 kg |
