Pressol ProSeries Sprayer Head with Stainless Nozzle

82431 103

Colour: Black
Black
Size: 190 mm tube (for 500ml and 750ml)
✓
In-stock: Inventory updated

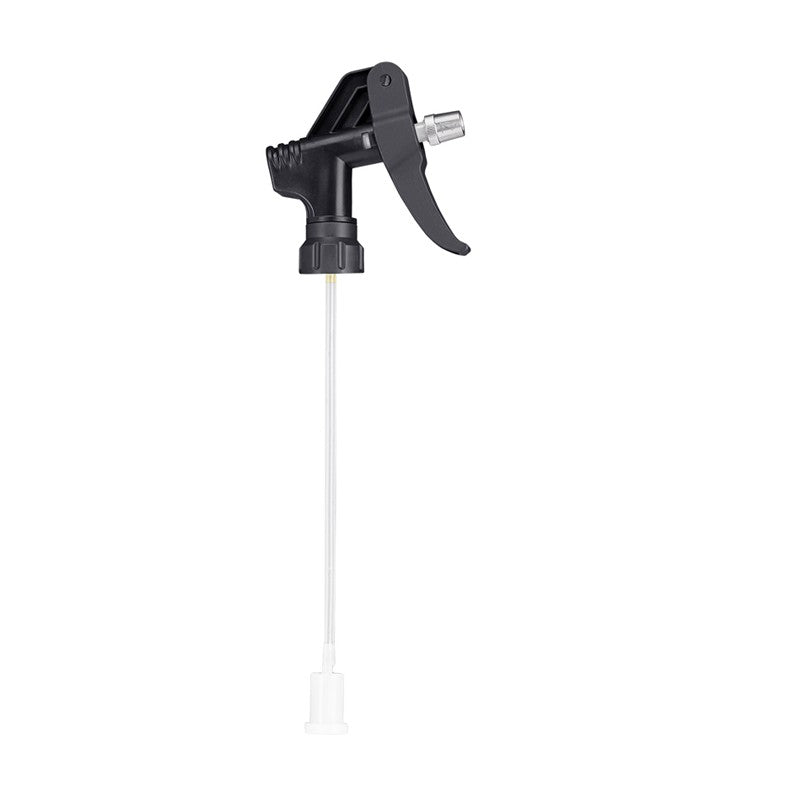

The complete double action spray head from the Pressol ProSeries sprayer, sold on its own. Black head, 190 mm flexible suction hose and the adjustable stainless steel precision nozzle, all in one assembly. It fires twice per trigger pull and puts out 1.4 ml per full stroke. Fit it to a ProSeries 500 ml or 750 ml bottle to replace a worn head, or keep one on the shelf as a spare.

Pressol 82 431 103 Double action Stainless nozzle included FKM seal 190 mm hose
What it isComplete double action spray head assembly
Pressol part82 431 103
IncludesSpray head, flexible suction hose, stainless steel precision nozzle
Output1.4 ml per full trigger cycle
Hose length190 mm, flexible, weighted
SealFKM
InternalsStainless steel pressure spring, ball and adjusting nut
PatternFine spray, adjustable through to a full conical jet
Working angle0 to 180 degrees, sprays inverted
Weight88 g

What you get

This is the whole head, not just the top. Three parts come as one assembly.

The double action pump. Pumps on the squeeze and on the release, so one pull fires two sprays. The output stays continuous while the trigger moves instead of pulsing, which is what gives you even coverage and fewer pulls per panel.
The flexible suction hose, Pressol 86 569 103. 190 mm, flexible and weighted, so the pickup follows the liquid. The sprayer keeps drawing anywhere between upright and fully inverted.
The stainless steel precision nozzle, Pressol 82 425 878. Machined stainless with a knurled grip. Turn it to go from a fine 50 degree fan to a concentrated jet.

When to replace a head

Signs the head is done

  • Output has dropped or the trigger feels soft
  • It spits air with liquid still in the bottle
  • Weeping or dripping from the pump body
  • The pattern has gone crooked or uneven
  • The trigger has stiffened up
  • It will not prime after a refill

Reasons to keep a spare

  • A dead head in the middle of a job stops the job
  • Cheaper than replacing the whole sprayer
  • Lets you move one head between labelled bottles
  • Heads wear faster than bottles on strong chemistry
  • Upgrades an older bottle to the current head
  • Takes seconds to swap, no tools

What it fits

It is the factory head for the Pressol ProSeries Double Action Sprayer in both sizes, so it screws straight onto a ProSeries 500 ml or 750 ml bottle.

The 190 mm hose is cut for those bottles. On a taller or shorter container you will need to trim the hose to suit, or it will either sit off the bottom and leave chemical behind, or kink against the base.

Not for Bilt Hamber Trace-Less. The standard ProSeries head is not recommended for Trace-Less. Pressol makes a dedicated Trace-Less head for that chemical and it is coming to us shortly. Contact us to be told when it lands.

Specifications

Brand Pressol
Part number 82 431 103
Description Sprayer head, black, with double action strokes, SRL 190
Colour Black
Spray volume per cycle 1.4 ml
Hose length 190 mm
Pump material Special plastic
Seal FKM
Suction pipe Very flexible special plastic
Pressure spring and ball Stainless steel
Adjusting nut Stainless steel
Nozzle supplied Adjustable stainless steel, Pressol 82 425 878
Suction hose supplied Flexible, Pressol 86 569 103
Dimensions 293 x 136 x 35 mm
Weight 0.088 kg
Country of manufacture Czech Republic

Common questions

Does the nozzle come with it?
Yes. The adjustable stainless steel precision nozzle, Pressol part 82 425 878, is supplied fitted. So is the 190 mm flexible suction hose. You are buying the complete head assembly, not just the pump body.
Will it fit my bottle?
It is the factory head for the ProSeries 500 ml and 750 ml bottles and screws straight on. On any other container, check the neck thread and be ready to trim the 190 mm hose so it reaches the bottom without kinking.
Is this the same as the industrial sprayer head?
No. This is the black ProSeries double action head with the stainless nozzle. The industrial sprayer uses a different head. If you are replacing a head on a red and black industrial bottle, ask us before ordering and we will confirm which part you need.
Why replace the head instead of the whole sprayer?
The head is the part that wears. The bottle usually outlasts it by a long way, particularly a fluorinated ProSeries bottle. Replacing just the head costs less, creates less waste and keeps the labelled bottle you are already using.
How do I make it last?
Flush it. Part fill the bottle with warm water and pull the trigger until clean water sprays through, especially after a strong degreaser or brake cleaner. Do not store the head sitting in aggressive chemistry for months, and keep it within the 5 to 30 degree C working range.
Can I buy the nozzle on its own?
Yes. The stainless steel precision nozzle is available separately if the rest of the head is still good and only the tip is worn or blocked.
What is SRL 190?
It is the Pressol designation for the suction hose length supplied with the head, 190 mm. It is the length that suits the ProSeries bottles.

Related parts

ProSeries Double Action Sprayer the complete sprayer in 500 ml and 750 ml.
ProSeries label sets front and back, sized for the 750 ml bottle.
Pressol Industrial Double Action Sprayer the red and black industrial bottle.
Pressol 0.5L measuring jug for diluting concentrates before they go in.

Specifications are taken from the Pressol data sheet for item 82 431 103. Check the neck thread and hose length before fitting this head to any container other than a Pressol ProSeries bottle. Always check chemical compatibility against the Pressol resistance table before decanting.

Not sure which head your bottle takes? Send us a photo of the sprayer and we will tell you.

Ask us The complete sprayer
